HT600 Vertical Discharge For Bulk Solids Conveying Pneumatic Rotary Valve
Product Description
1. Working principle of the pneumatic rotary valve is to adopt the principle of rotating the impeller and adopt flange connection, which is installed at the discharge port with pressure difference to ensure that the air pressure in the conveying pipe does not leak.
2. While feeding continuously and uniformly, the air circuit is blocked to ensure the use of system.
3. The electric pneumatic rotary airlock valve relies on the rotating impeller to transport materials.
4. At the same time, it plays a sealing role, preventing air from sucking in the outlet during the pneumatic conveying process, and ensuring safe conveying and collecting of materials.
Main Features:
★ Clearance to be 0.06mm, perfect airlock performance
★ Exquisite workmanship, beautiful appearance
★ The airtight performance can stand pressure to -1 bar.
★ External bearing installation, durable and excellent performance.
Dimension Display
| Type | External dimension | Inlet | Outlet | Install size | Shaft |
| | A | B | H | E | F | D1 | D2 | e | f | h | g | m | D | d | k |
| TGFY-5L | 410 | 300 | 435 | 250 | 170 | Φ222 | Φ152 | 180 | 150 | 160 | 220 | 130 | Φ200 | Φ35 | 50 |
| TGFY-7L | 420 | 310 | 435 | 260 | 180 | Φ250 | Φ162 | 182 | 160 | 160 | 230 | 140 | Φ220 | Φ35 | 50 |
| TFGY-9L | 470 | 310 | 435 | 260 | 230 | Φ270 | Φ192 | 182 | 210 | 160 | 230 | 190 | Φ240 | Φ40 | 50 |
| TGFY-12L | 520 | 370 | 530 | 320 | 238 | Φ288 | Φ208 | 240 | 218 | 190 | 290 | 200 | Φ260 | Φ40 | 50 |
| TGFY-16L | 570 | 370 | 530 | 320 | 280 | Φ330 | Φ250 | 240 | 260 | 190 | 290 | 240 | Φ300 | Φ40 | |
Application Pneumantic Rotary Valve
Overseas Exhibitions
Processing Procedure
Small energy consumption
High quality & Competitive price
Model after professional selection
Single spray paint reduce the waste residue
The materials are used after aging treatment
The products processed by professional workers
Spare parts & motor enjoy one year after-sales warranty
Product Tags:
|
|

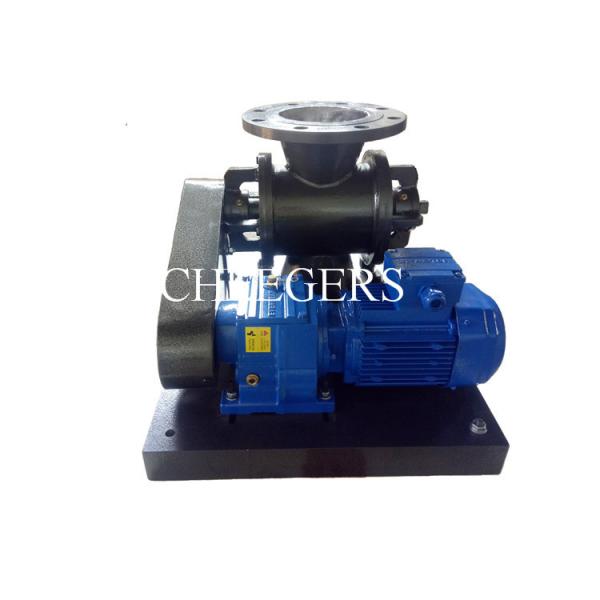

HT600 1.5KW Pneumatic Rotary Valve Vertical Discharge Bulk Material Images
|
